Welcome to Lakhlani Associates. We are consulting civil and Structural Engineers having qualification, expertise, experience and infrastructure for providing top notch quality design services. Since 1991, we are providing civil and structural design services, as per almost all international standards, for the following.
While designing concrete structures, focus is on optimum utilization of concrete’s compressive strength to achieve sleek and yet elegant structures. Design services are offered as per IS 456, ACI 318, AS 3600, BS 8110, CSA A 23.3, Eurocode 2, NZS 3101 and Saudi Building Code.
at Mota Mauva Crematorium for Rajkot Municipal Corporation
» Pyramid central rise : 1.85 m
» Slab thickness : 150 mm
» Edge beam size : 0.325 m x 0.45 m
» Analysis method : FEM analysis with
finite plate elements rigidly
connected at pyramid ridges
More...
for Community Centre at Saurashtra University
» No. of arches : Three at 5.5 m c/c
» Arch central rise : 5.95 m
» Arch section : 0.45 m x 0.75 m
» System to resist horizontal thrust at
foundation level : Shear Pins
anchored to rocky strata
More...
at Standing Committee Hall for Rajkot Municipal Corporation
» Waffle grid size : 1.8 m x 1.8 m
» Slab Thickness : 80 mm
» Waffle beam size : 0.23 m x 0.9 m
» Technical challenge faced : Structure
was to be built over an existing two
storey load bearing structure
More...
for Hostel Building at R.K. University
» Flat slab thickness : 150 mm
» Shear wall dimensions :
2.5 m length, 0.3 m thick
» System to resist flat slab punching
shear : Stud rails in column drop panel
for an underground utility room at Hotel TGB Seasons
» Dome central rise : 2.25 m
» Dome thickness : 125 mm
» Edge Beam size : 0.75 m x 0.60 m
» Concrete grade : M25

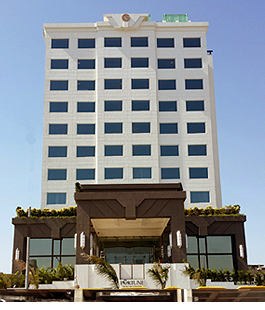

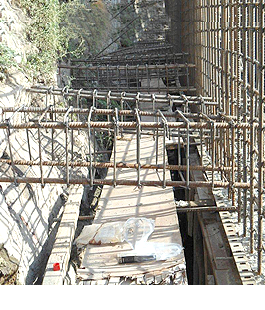

Hotel for ITC Fortune
» No. of floors :
Two Basements + 11 storey
» Basement Depth : 9.0 m
» Interesting Structural Features:
» To avert vertical geometrical
irregularity, peripheral podium
structure separated from
central tower by provision of a
75 mm wide peripheral seismic
separation joint.
» Considerable optimization of 9.0
m high basement retaining
walls and basement bottom
slab, subjected to water
pressure head of 7.5 m, by
effective use of rock anchors.
More...
for Lion Enclosure at Pradhyuman Park Zoo
» Wall thickness at base : 480 mm
» Base width and thickness : 3.73 m,
420 mm
» Concrete & steel grade : M20 &
Fe415
to Support Steel Braced Barrel Roof of an Indoor Stadium at Race Course, Rajkot
» Diameter of circular column : 675 mm
» Dimensions of two rectangular
columns : 300 mm x 750 mm
» Total height of space frame : 10.35 m
More...
at Energy Park for Rajkot Municipal Corporation
» Base of space frame : Equilateral
triangle with each side of 17.66 m
» Height of space frame : 9.79 m
» Size of space frame element :
450 mm x 450 mm
for Court Building at Rajkot.
» No. of floors : Ground Floor + 9
storey
» Structural system : Dual system
of Special Moment Resisting
Frames (SMRF) and Shear walls
» Interesting Structural Features:
» To avert vertical and horizontal
geometrical irregularity,
building was divided in three
parts by provision of two seismic
separation joints.
» For 200 mm wide seismic
separation joint, special
crumple section was detailed to
achieve continuity at floor level.
More...
Steel being strong in compression and tension, while weak against buckling when slender, attempts are made to exploit the favourable qualities and safeguard against weaknesses while finalizing the structural system. Design services are offered as per IS 800, AISC 360, AS 4100, BS 5950, CSA S16, Eurocode 3, NZS 3404 and Saudi Building Code.
for a Commercial Building in Pune
» No. of floors : Basement + 5 storey
» Structural system : Moment
Resisting Frame System
» Floor system : Concrete slab with
profiled sheet decking
for an Award Winning Indoor Stadium at Rajkot
» Span of vault : 39.25 m
» Central rise : 6.50 m
» Depth of double layer vault : 0.75 m
» Structural members : ISMC 250 and
ISA 50 x 50 x 6
More...
for Jindal Saw Limited at Mundra, Kutchh
» No. of steel building units : 13 with
machines on floors at varying heights
» No. of belt conveyors : 16
» Structural system :
MRF with braced bays
More...
for Kirloskar Small Engines Ltd.
» Portal column size : 300 mm x 500 mm
» Portal beam size : 300 mm x 610 mm
» Structural members : ISA 75 x 75 x 6,
ISO 16 and ISO 10
More...
for Entrance Gate to City of Rajkot
» Arch central rise : 10.02 m
» Base dimension for space frame
tetrahedron : 850 mm x 850 mm
» Structural members :
SHS 25 and SHS 32
More...

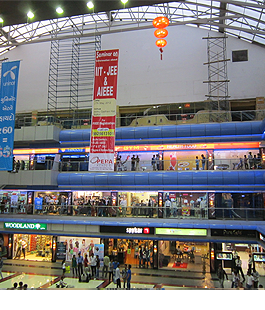

for Crystal Mall, Rajkot
» Roof structure : Series of trusses
with curved rafter
» Truss height : 6.75 m
» Support conditions : One end
pinned and other end pinned roller
» Structural Members :
RHS 80 x 40, SHS 72, SHS 91.5
and SHS 132

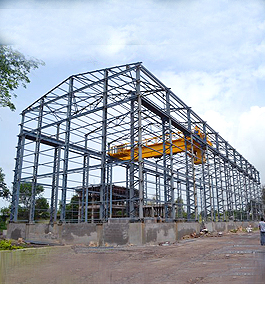

for Orient Abrasives Ltd., Porbandar
» Span of shed : 18.3 m
» Structural system :
Laced columns with A-truss
» Column size : 950 mm x 400 mm
» Structural members :
ISMC 400 and ISA 65 x 65 x 6
More...
Covering an Atrium for B. T. Savani Kidney Hospital, Rajkot
» Vault span : 10 m
» Central rise : 1.5 m
» Structural members : RHS 50 x 25
» Support condition :
Perfect hinge connection
More...
» Structural system : Braced cantilever
frame
» Height of frame : 2.8 m
» Structural members : RHS 100
at Samakhyali, Kutchh
» Structural system : Cantilever
columns with top runner beam
and balanced cantilever brackets
» Structural members : SHS 72 and
RSH 96 x 48
This includes structures comprising of more than one structural material and all those becoming part of a carefully conceived single structural system. Having proper understanding of strength and weaknesses of each structural material, while conceiving the structural system, attempts are made to distribute the structural materials such that their strength utilization is optimized. Design services are offered as per IS, ACI, AISC, AS, BS, CSA, Eurocode, NZS and Saudi Building Code.
for an Award Winning Indoor Stadium for Rajkot Municipal Corporation More...
for Tanna Cranktech Pvt. Ltd
» Height of vertical truss : 8.5 m
» Depth of truss : 1.5 m
» Structural member: 300 mm x 300 mm
concrete columns with ISA 65 x 65 x 6
More...
for DJR Delux Bearings Ltd., Pune
» Span of portal frame : 15.0 m
» Cross sectional dimension of portal :
1.2 m x 1.2 m
» Structural member: SHS 91.5, SHS 72,
SHS 38 and 140 mm thick concrete
deck slab
More...
for Entrace Gate at Skyvilla Township
» Total height of gate : 12.0 m
» Cantilever length of steel frame :
11.25 m
» Structural members : SHS 150, SHS
100, SHS 60 and 300 mm x 600 mm
concrete columns
for Amul Autocomponents Pvt. Ltd
» Lattice beam cross section :
834 mm x 834 mm
» Concrete column size :
380 mm x 380 mm
» Structural steel members : SHS 72,
SHS 49.5 and SHS 25

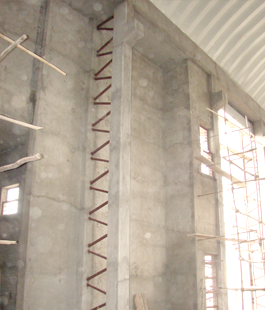

Valbrass India Pvt. Ltd., Jamnagar
» Span of vault roof : 15.0 m
» Height of composite lattice
frame :11.50 m
» Structural members :
300 mm x 380 mm concrete
columns with SHS 49.5
This includes design of grade level tanks, elevated tanks, water treatment plants, sewage treatment plants, pumping stations, intake wells, and swimming pools. Design services are offered as per IS 3370, ACI 350, AS 3735, BS 8007, Eurocode 2 Part 3, NZS 3106 and Saudi Building Code.
Activated Sludge Process Type at Raiyadhar for Rajkot Municipal Corporation
» Primary settling tank : 32.15 m dia
» Aeration tank : 72.0 m x 36.0 m
» Sludge digester :
25.0 m dia x 10.35 m water depth
for Rajkot Municipal Corporation
» Clariflocculator diameter : 50.0 m
» Clariflocculator water depth : 3.8 m
» Filter house size : 47.0 m x 18.0 m
» Number of filter beds : 12

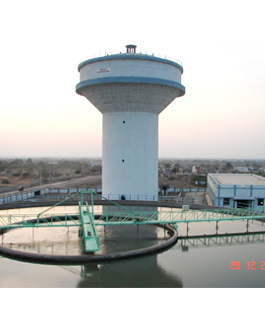

With 25.0 m Staging Height for Rajkot Municipal Corporation
» Container diameter : 24.0 m
» Water depth : 8.90 m
» Staging shaft diameter : 13.0 m
» Cylindrical wall thickness : 265 mm
» Conical dome thickness : 775 mm
» Staging shaft wall thickness :
300 mm
» Top dome thickness : 125 mm
» Bottom dome thickness : 200 mm
Reinforcment for Bottom Dome and Conical Dome
» Container diameter : 21.50 m
» Water depth : 8.90 m
» Staging shaft diameter : 12.0 m
» Cylindrical wall thickness : 250 mm
» Conical dome thickness : 710 mm
» Staging shaft wall thickness :
270 mm
» Top dome thickness : 125 mm
» Bottom dome thickness : 200 mm
With 35 m diameter & 16 m Depth_for Rajkot Drainage Scheme
» Wet well diameter : 35.65 m
» Wet well wall thickness : Varying from
1400 mm to 300 mm
» Dry well diameter : 20.25 m
» Dry well wall thickness : Varying from
750 mm to 300 mm
More...
for Rajkot Water Supply Scheme
» Intake well diameter : 9.54 m
» Intake well depth : 11.35 m
» Approach bridge span : 24.0 m
for Bhavnagar Water Supply Scheme
» Pump house size : 48.0 m x 18.0 m
» Pump gallery depth below ground :
5.0 m
» Total height of pump gallery :
9.50 m
» No. of pumps : 13
» Pump gallery retaining wall
thickness : Varying from 350 mm
to 175 mm
for 45 MLD Capacity Sewage Treatment Plant at Madhapar
» Secondary settling tank : 36.0 m dia
» Aeration tank : 53.10 m x 35.20 m
» Sludge digester : 22.8 m dia x 9.1 m
water depth
For Jamnagar Water Supply Scheme
» GSR dimensions : 35.0 m x 35.0 m
compartment – 4 no.
» Water depth : 4.5 m
» Wall thickness : Varying from
475 mm to 250 mm
for Rajkot Municipal Corporation
» Swimming pool size : 50.0 m x 21.0 m
» Pool depth : Varying from
1.20 m to 2.00 m
» Base slab thickness : 200 mm
» Wall thickness : 200 mm
This includes design of:
Design services are offered as per IS 2974, ACI 351.3R and BS CP 2012-1.
Reinforcement Mesh
» Foundation size :
9.15 m x 8.15 m x 2.8 m thickness
» Concrete grade : M25
» Reinforcement grade : Fe415
» Concrete quantity : 250 cu m
» Reinforcement quantity : 14000 kg
Reinforcement Mesh
» Foundation size :
12.60 m x 10.60 m x 3.6 m thickness
» Concrete grade : M25
» Reinforcement grade : Fe415
» Concrete quantity : 550 cu m
» Reinforcement quantity : 29000 kg
Foundation at Mars Forge Pvt. Ltd., Rajkot
» Foundation size :
6.50 m x 6.50 m x 2.1 m thickness
» Total depth below working floor :
4.40 m
» Concrete grade : M30
» Reinforcement grade : Fe415

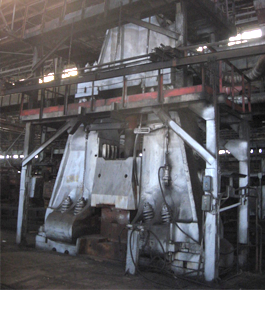

Foundation at Thrissur for Steel & Industrial Forging Ltd.
» Foundation size :
12.6 m x 10.6 m x 3.6 m thickness
» Anvil base : 4.5 m x 2.5 m
» Depth below working floor : 8.14 m
» Weight of Tup and top die : 160 kN
» Weight of Anvil : 3250 kN
» Weight of hammer frame : 950 kN
» Amplitude at Anvil base : 1.639 mm
» Amplitude at foundation : 1.01 mm
Foundation at Chakan
» Foundation size : 9.10 m x 8.20 m x
2.80 m thickness
» Weight of Tup and top die : 80.65 kN
» Weight of Anvil : 1200 kN
» Weight of hammer frame : 400 kN
» Amplitude at Anvil base : 1.137 mm
» Amplitude at foundation : 0.887 mm
This includes design of:
For Rajkot Municipal Corporation
» Pavement : Rigid pavement over
sub-base and sub-grade
» Cement / Fly Ash ratio : 65% : 35%
» Concrete grade : M40
» Flexural strength : > 5 Mpa
» Total area covered : 57500 sq. m.

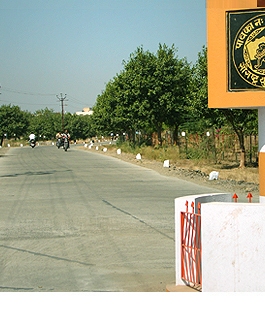

At Saurashtra University Rajkot.
» Pavement : White topping over
existing bituminous road
» Concrete Technology :
High Volume Fly Ash Concrete
» Cement / Fly Ash ratio : 1 : 1
(225 kg/cum each)
» Concrete grade : M35
» Flexural strength achieved : > 5 Mpa
» Total area covered : 27500 sq. m.
» Pavement thickness : 200 mm
» Expansion joint spacing : 35 m
» Dummy groove joint spacing : 3.5 m
» Year of construction : 2004
» Maintenance cost as on March 2015 :
Nil
for Rajkot Municipal Corporation
» Concrete grade : M35
» Flexural strength achieved : > 4.5 Mpa
» Pavement thickness : 250 mm

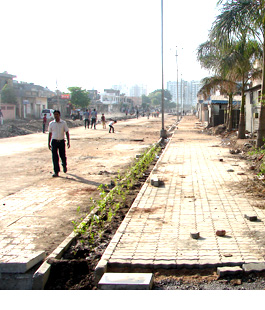

Provisions for,
» Carriageway with divider
» On road parking
» Bicycle track
» Foot path
» Bus stop
» Vendor spaces
» Public sit outs
Raiya road for Rajkot Municipal Corporation
» Total ROW : 24 m
» Carriage way : HVFA concrete
pavement 13.0 m wide
» Divider : 0.6 m wide with plantation
» On road parking : Paver block
with 2.0 m width on each side
» Plantation strip : 0.6 m wide with
electric poles, trash cans,
utility boxes etc.
» Footpath : Paver block with 2.6 m
width on each side
» Underground services : Drainage,
water supply, storm water and
gas lines. Two 300 mm dia
conduits for telecom services
For 24 m wide ROW
» Carriage way : 2 x 6.5 m
» Divider : 0.6 m
» On road parking : 2 x 2.0 m
» Plantation strip : 2 x 0.6 m
» Footpath : 2 x 2.6 m
Nana Mava Road for Rajkot Municipal Corporation
» Spacing of joints : 40 m
» Width of joint : 25 mm
» Dowel bars : 32 ϕ @ 250 c/c
» Length of dowel bars : 500 mm
This includes design of concrete, steel and composite bridges. Design services are offered as per IRC, AASHTO, AS 5100, Eurocodes, CAN/CSA S6-06 and NZTA Bridge Manual.
» Span length : 6 x 5.17 m
» Height of substructure from base: 6 m
» Deck slab thickness : 550 mm
» Concrete grade : M30
» Reinforcement grade : Fe415
for Rajkot Municipal Corporation
» Span length : 2 x 4.5 m
» Deck slab thickness : 400 mm
» Concrete grade : M25
» Reinforcement grade : Fe415

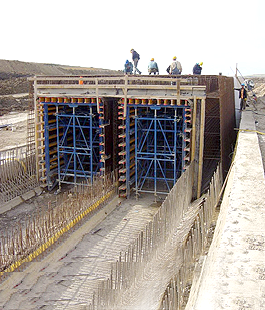

» Cell size : 3.5 m x 6.0 m
» Concrete grade : M25
» Reinforcement grade : Fe415
» Bottom slab thickness : 620 mm
» Top slab thickness : 520 mm
» Vertical wall thickness : 630 mm

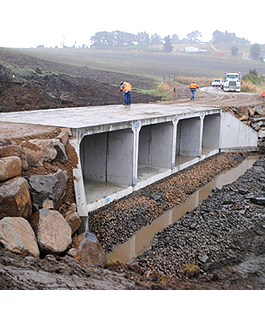

» Cell size : 4.5 m x 4.0 m
» Concrete grade : M25
» Reinforcement grade : Fe415
» Bottom slab thickness : 450 mm
» Top slab thickness : 500 mm
» Vertical wall thickness : 450 mm
» Haunch size : 300 mm x 300 mm
Two span continuous slab culvert
» Slab thickness : 400 mm
» Concrete grade : M25
» Reinforcement grade : Fe415
For Non-Engineered structures and for old structures which are designed as per then prevalent seismic design standards, it becomes mandatory to carry out seismic retrofitting to make them comply present day design standards.
Genius School Rajkot
» Length of shear wall : 1680 mm
» Thickness of shear wall : 180 mm
» Concrete grade : M20
» Reinforcement grade : Fe415
College Building, Rajkot
» Length of shear wall : 1200 mm
» Shear connectors : #12 bars
anchored to slab
» Concrete grade : M25
» Reinforcement grade : Fe415
Genius School Rajkot
» Total no. of shear wall : 20
» Length of shear wall : 1680 mm
» Thickness of shear wall : 180 mm
» Boundary element size :
180 mm x 305 mm
» Concrete grade : M20
» Reinforcement grade : Fe415
» Shear connectors :
#12 bars anchored to slab

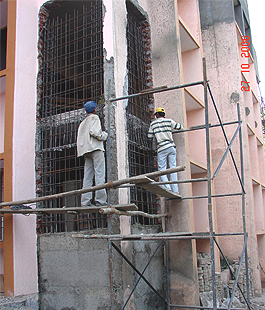

College Building, Rajkot
» Shear wall thickness : 300 mm
» Beam width : 230 mm
» Connection : Beam reinforcement
through shear wall
» Concrete grade : M25
» Reinforcement grade : Fe500

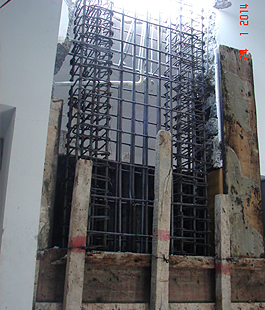

College Building, Rajkot
» Shear wall length : 1200 mm
» Thickness of shear wall : 300 mm
» Boundary element size :
300 mm x 300 mm
» Concrete grade : M25
» Reinforcement grade : Fe500
For building projects 35 % and for infrastructure projects almost 80 % of the project cost goes to structural work. Structural cost optimization through value engineering helps to bring down the project cost to a great extent. In this context, value engineering is an integral part of structural designing and focus is always on to design a safe and yet economical structure.
450 MT Steel Saving
» Conventional steel consumption for
this capacity sinter plant : 2800 MT
» Optimized consumption : 2350 MT
» Value engineering through :
Innovative dual structural system
More..
30 % Cost Saving Due to Innovative Geometrical Shape
» Conventional shape : Adjoining
rectangular dry well and wet well
» Innovative shape used : Circular
with dry well inside wet well
More..
Retaining Wall Optimization Through Anchoring With Hard Rock
» Retaining wall thickness with
conventional design : 1200 mm
» Optimized wall thickness : 300 mm
» Value engineering through :
» 300 mm x 300 mm anchor
beams at 1.5 m c/c
» Concrete grade : M30
» Reinforcement :
4 - #25 with #8, 100 c/c
More..

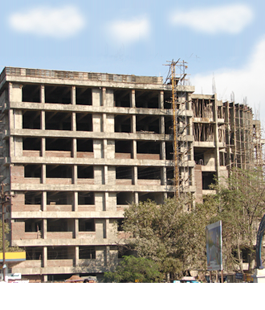

20 % Savings in Structural Cost Through Value Engineering
» No. of floors : Ground + 10 storey
» Structural system : Flat slab with
shear walls and outer peripheral
beams
» Value engineering through :
Comparison of five different
possible structural systems to
arrive at the most economical one
» Flat slab thickness : 150 mm
» System to resist punching shear
in flat slab : Studrails
» Concrete grade : M25
» Reinforcement grade : Fe500D
More..
50 MT Steel Saving
» Conventional design steel
consumption : 207 MT
» Optimized design steel
consumption : 157 MT
» Value engineering through :
Space frame system with laced
columns and A-trusses
More..
Bottom Slab Optimization using Rock Anchors
» Water pressure head on slab : 7.5 m
» Conventional system : More than
1.0 m thick slab with beams
» Optimized system : 300 mm thick
slab with rock anchors at 1.15 m c/c
More..
Lakhlani Associates will provide the society with top notch quality civil and structural design services while adhering to the project time frame. Structures designed by us shall be having optimum balance between safety, serviceability, durability, economy and aesthetics. To achieve this, attempt shall be made to develop innovative and unconventional structural systems, by using different structural materials.
I would like to take this opportunity to thank you for the work you performed while answering key questions regarding the Indian Seismic Code, reviewing our final seismic report and certifying its compliance with IS 1893, Parts 1 & 4.
It was useful to find a company, such as yours, that was willing to work within the confines of our schedule to allow us to meet our customer’s requirements in a timely fashion.
Robert Higbee,
Sr. Analytic/Mechanical Design Engineer,
R & D PA USA
We have been working on various structural and civil projects with Lakhlani Associates. They have consistently delivered high quality engineering solutions. I am truly impressed with their depth of knowledge, continued responsiveness, thoroughness, and their reliability in developing solutions on time. They have always met their time targets when delivering their services.
D. Weekes,
Civil/Structural Engineer,
West Indies
We had engaged Lakhlani Associates to provide structural design and drawings for a series of eight pipeline crossings over ravines and waterways, as well as 21 steel bents supporting the crossings.
We have found them to be:
In addition, we now consider their services to be a valuable resource that will allow us to take advantage of business opportunities we might not be able to otherwise. We look forward to working with them on other projects in the future.
K S Amer,
Alaska Engineering,
Texas, USA
We take this opportunity to convey our earnest gratitude for being part of our professional team responsible for detailed engineering and commissioning of the ITC Fortune Park JPS Grand hotel project.
Your involvement in the team as a structural and value engineering consultant greatly enhanced overall strength of the team. Structural solutions provided by you in form of immaculate drawings were indispensable for other professionals and execution team members.
Value engineering carried out for basement bottom slab and retaining walls, while making innovative use of anchors, helped to optimize the structural cost to a great extent. Your valuable inputs have also helped us to budget our structural cost.
Hiren Sodha,
Managing Director,
Fortune Park JPS Grand
Lakhlani Associates, Rajkot, Gujarat, India was appointed by Orient Abrasives Ltd., GIDC Industrial Area, Porbandar, Gujarat, India as civil, structural and value engineering consultants for their industrial shed and tilting furnace foundation project.
Lakhlani Associates provided the required technical services up to total satisfaction of Orient Abrasives Ltd. within the stipulated time period for timely commissioning of the project.
Director,
Orient Abrasives Ltd.

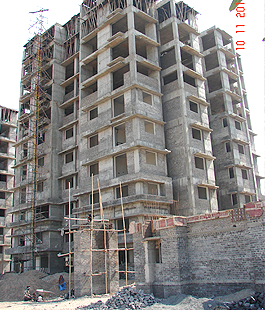

This is to certify that Lakhlani Associates, Rajkot, Gujarat, India was appointed by C A Enterprise, ‘Solitaire’, 150 feet ring road, Rajkot, Gujarat, India as structural and value engineering consultants for their residential towers, ‘Crystal Avenue’, at Crystal City, Ghanteshwar, Rajkot.
Lakhlani Associates provided the required technical services up to total satisfaction of C A Enterprise within the stipulated time period for timely commissioning of the project. Value engineering services provided by Lakhlani Associates, while carrying out comparison of five different structural systems, resulted in almost 20 % savings in structural cost of the project.
Partner,
C A Enterprise
With a clear goal of total client satisfaction, Lakhlani Associates is undergoing a process for implementation of Quality Management System (QMS) complying the requirements of ISO : 9001. Preparation of a quality manual, procedures and reference documents, covering various processes like design, drafting, communication etc., is under process. In very near future, Lakhlani Associates shall be complying requirements of ISO : 9001.
